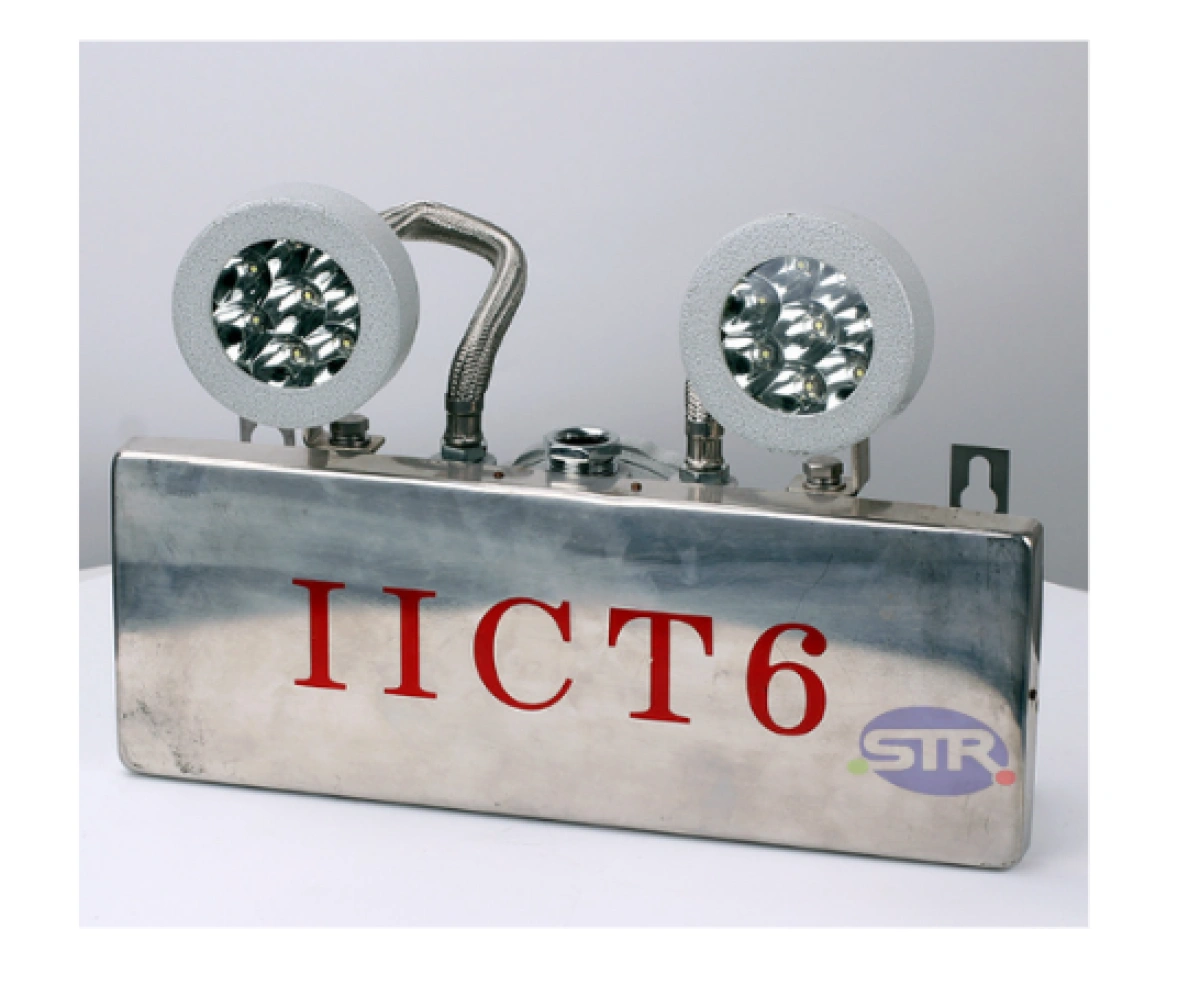

Stainless Steel Explosion-Proof Emergency Light BCJ51
1. 10W rotary warning light ordinary diode, high brightness LED lamp bead;
2. Number of flashes: (150/min)
Sound source parameters
Sound intensity: ≥ 90-180dB;
| Model and Specifications | Explosion-Proof Marking | Light Source | Luminaire Type | Power (W) | Charging Time (h) | Emergency Duration (min) | Weight (kg) |
|---|---|---|---|---|---|---|---|
| BCJ51-□ | Ex db eb ib mb IIC T6 Gb, Ex tb IIIC T80°C Db Ex ib IIIC T80°C Db |
LED | I | 2*3 | 24 | 120 | 2.5 |
| BCJ52-□ |
| Rated Voltage/Frequency | Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|
| DC 24V / DC 36V | G3/4" | Φ10~Φ14mm | IP66 | WF1, WF2* |
1. Non-polar connection;
2. Handheld encoder coding;
3. Independent short-circuit protection with self-reset capability;
4. Product features a special die-cast aluminum alloy housing with high-pressure electrostatic powder coating;
5. Stainless steel exposed fasteners for high corrosion resistance;
6. Die-cast aluminum alloy housing undergoes high-speed shot blasting followed by high-pressure electrostatic powder coating for corrosion resistance and aging resistance;
7. Evacuation symbols are freely selectable by users or customizable upon request;
8. Utilizes ultra-high brightness LED light source with low power consumption and long lifespan, enabling long-term maintenance-free operation;
9. Permanently illuminated mode automatically charges during normal power supply and activates automatically during accidents or power outages.
