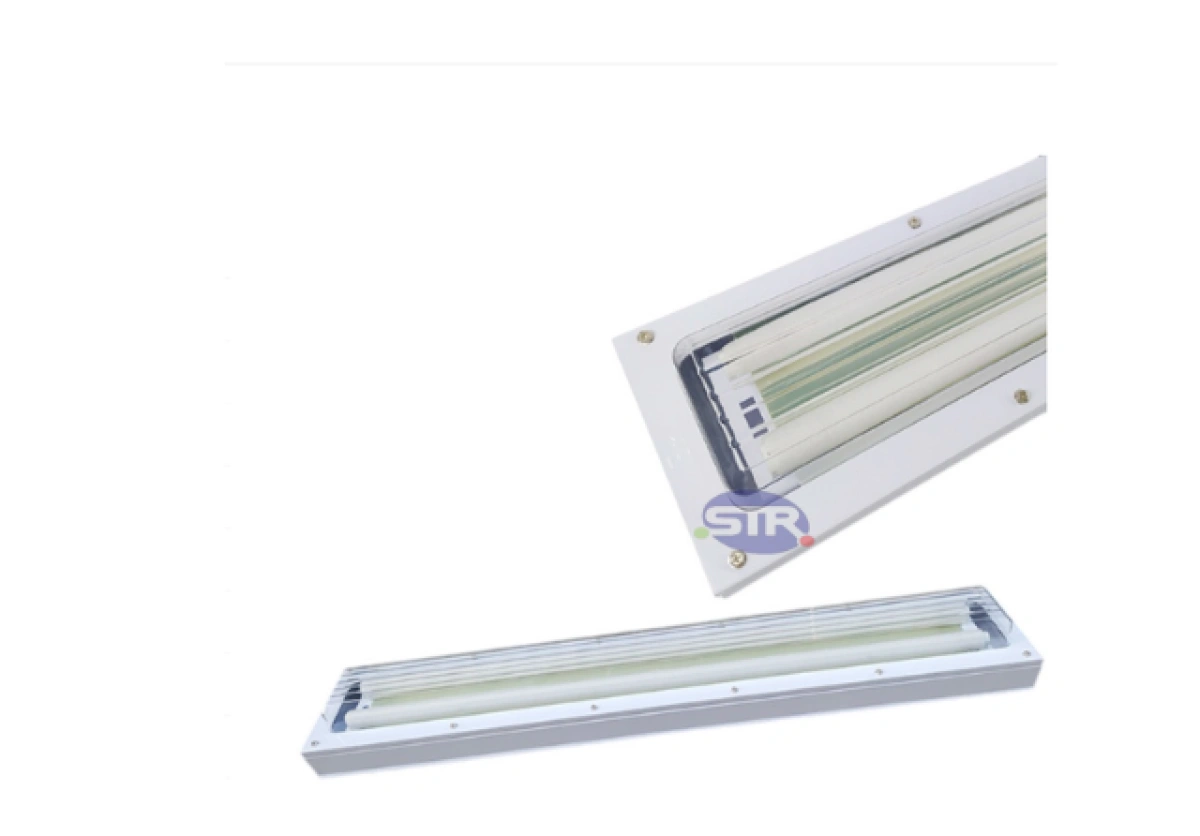

Explosion-Proof Cleanroom Fluorescent Light BHY
| Product Model | Rated Voltage | Light Source | Lamp type | Luminaire Type | Protection Rating | Ballast Type | Lamp Holder Specifications |
|---|---|---|---|---|---|---|---|
| BHY-1*20 | AC 220V | T10 Single leg fluorescent lamp | 20 | Ex de mb IIC T6 Gb DIP A20 TA,T6 | IP66 | Inductive | Fa6 |
| BHY-2*20 | 2*20 | ||||||
| BHY-1*28 | T5 Double foot fluorescent lamp | 28 | Electronic | G5 | |||
| BHY-2*28 | 2*28 | ||||||
| BHY-1*36 | T8 Double foot fluorescent lamp | 36 | Electronic | G13 | |||
| BHY-2*36 | 2*36 | ||||||
| BHY-1*40 | T10 Single leg fluorescent lamp | 40 | Inductive | Fa6 | |||
| BHY-2*40 | 2*40 |
| Corrosion Resistance Rating | Air Inlet Specifications | Cable Specifications | Battery Charging Time | Emergency Start-Up Time | Emergency Lighting Duration |
|---|---|---|---|---|---|
| WF1 | G3/4" | 9~14mm | ≤24h | ≤0.3s | ≥90min |
1. The explosion-proof clean fluorescent lamp consists of a housing, LED light source and accessories, and a transparent cover;
2. The housing is welded from high-quality cold-rolled steel plate with a powder-coated finish, offering an aesthetic appearance, corrosion resistance, and aging resistance;
3. The transparent cover uses high-strength tempered glass, providing high transparency and excellent impact resistance;
4. The light source employs instant-start tubular LED lamps, featuring rapid ignition, high brightness, and energy-efficient operation;
5. All fasteners are made of stainless steel for superior corrosion resistance;
6. The luminaire features an integrated structure for easy maintenance;
7. Utilizes a sealed-type Ex component explosion-proof design, ensuring safety, reliability, and extended service life.
