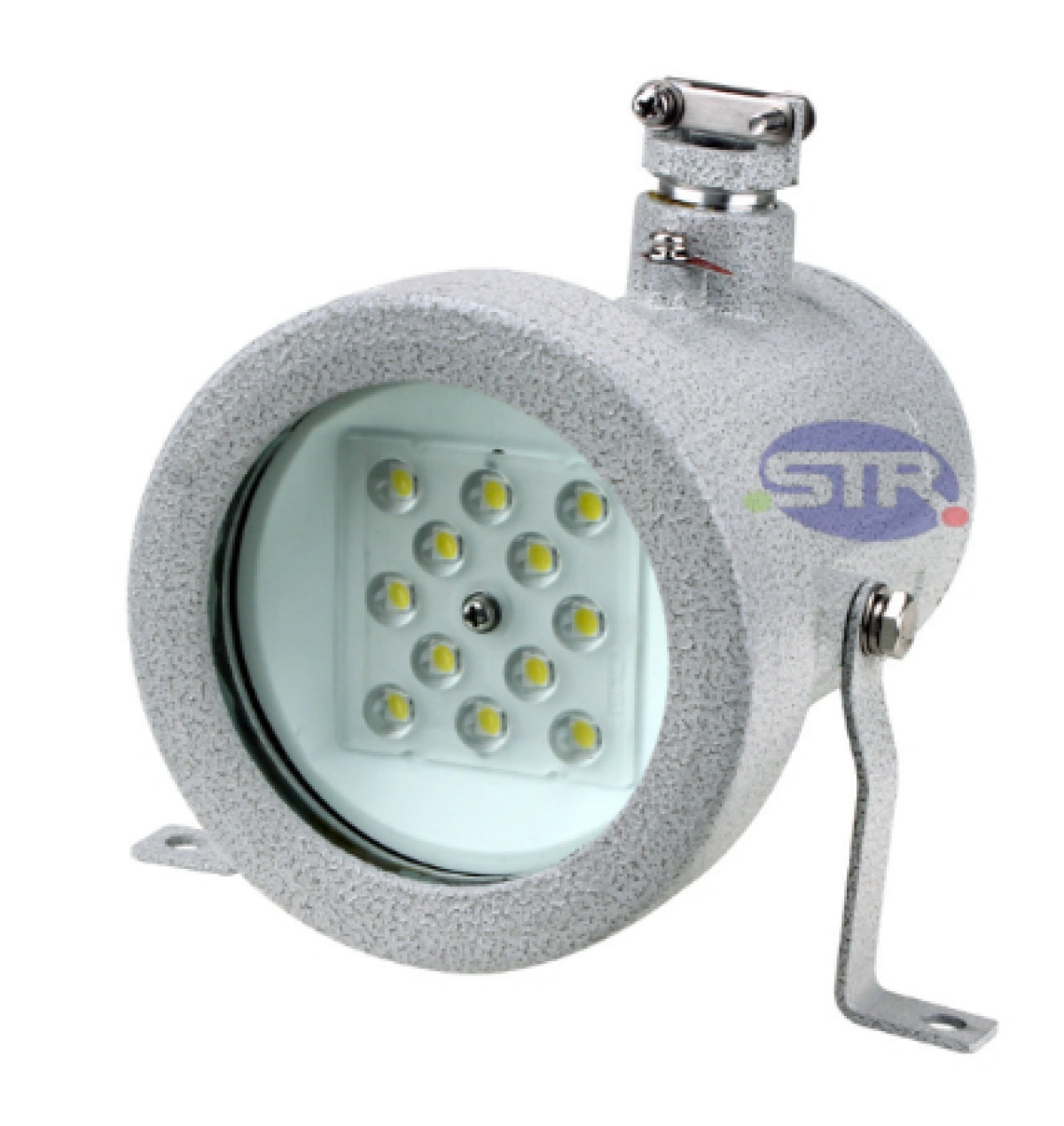

Explosion-Proof Sight Glass Light BSD51
GB/T3836.1、GB/T3836.2、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-31
| Model and Specifications | Explosion-Proof Marking | Light Source | Power (W) | Color Temperature (K) | Weight (kg) |
|---|---|---|---|---|---|
| BSD51-□ | Ex db IIC T6 Gb Ex tb IIIC T80°C Db |
LED | 15 | 3000~5700 | 0.7 |
| Rated Voltage/Frequency | Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|
| AC 220V, 36V, 24V DC 36V, 24V |
G1/2" | Φ7~Φ10mm | IP66 | WF1, WF2* |
1. Aluminum alloy die-cast housing undergoes high-speed shot blasting followed by high-pressure electrostatic powder coating for corrosion resistance and aging resistance;
2. Stainless steel exposed fasteners provide superior corrosion resistance;
3. High-strength tempered glass transparent cover;
4. L Series utilizes high-brightness energy-saving LED light sources, environmentally friendly with extended lifespan and long-term maintenance-free operation;
5. Features a delay function;
6. Magnetically controlled switch specifically designed for chemical reaction vessels or designated locations in hazardous environments. Enables dual control modes: luminaire switch and external switch operation;
7. Mounting bracket angle is freely adjustable for exceptional flexibility;
8. Compatible with both steel pipe and cable wiring.
