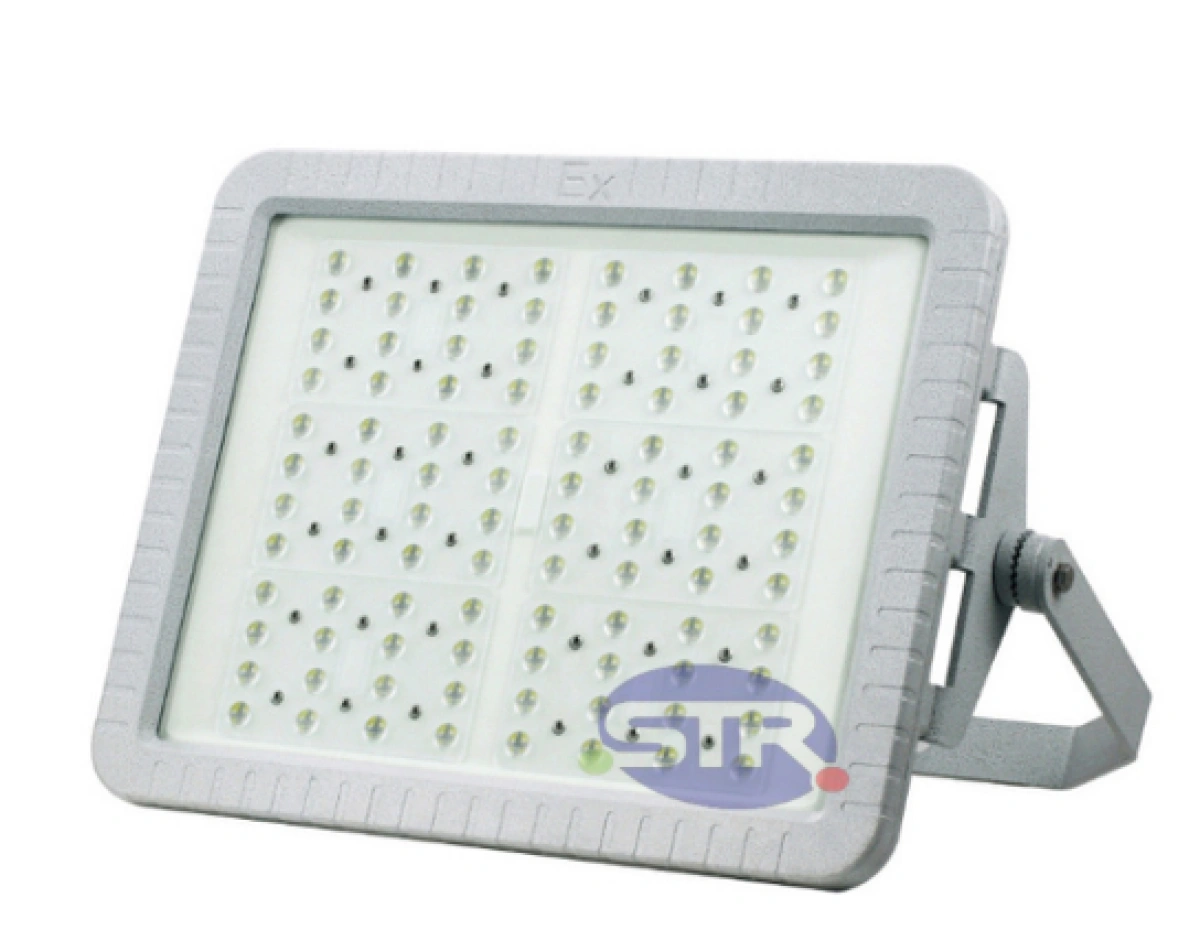

Explosion-Proof Light BED51-III
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.9、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC 60079-18、IEC 60079-31
 |
Premium brand chips, rationally arranged, unidirectional light emission, uniform and soft illumination, luminous efficacy ≥120lm/W, high color rendering index Ra＞70, extended service life, eco-friendly, color temperature 3000K~5700K. |  |
Innovative integrated design combining optical components and anti-glare elements, featuring multi-point light distribution for uniform illumination without glare; Multiple adjustable angles available, suitable for installation at varying heights. |
 |
The heat dissipation structure features fin design to increase the heat dissipation surface area. Air convection channels are incorporated to utilize airflow, effectively dissipating heat from the light source cavity and ensuring long-term reliable operation of the luminaire. |
| Model and Specifications | Explosion-Proof Marking | Light Source | Beam | Power (W) | Luminous Flux (lm) | Color Temperature (K) |
|---|---|---|---|---|---|---|
| BED51-□ | Ex db eb mb IIC T6 Gb, Ex tb IIIC T80°C Db |
LED | Floodlight | 10~100 | 1200~12000 | 3000~5700 |
| 100~180 | 12000~21600 | |||||
| Ex db eb mb IIC T5 Gb, Ex tb IIIC T95°C Db |
Spotlight | 10~100 | 1200~12000 | |||
| 100~200 | 12000~24000 | |||||
| Floodlight | 180~200 | 21600~24000 | ||||
| Floodlight/Spotlight | 180~320 | 21600~38400 |
| Rated Voltage/Frequency | Inlet Thread | Cable Outer Diameter | Protection Rating | Corrosion Resistance Rating |
|---|---|---|---|---|
| AC 220V/50Hz | G3/4" | Φ10~Φ14mm | IP66 | WF1, WF2* |
1. Radiator designed with special die-cast aluminum alloy, featuring high-pressure electrostatic powder coating;
2. Exposed stainless steel fasteners with high corrosion resistance;
3. Separate structures for light source and power supply compartments;
4. Professionally designed optical system with high light utilization, optimized distribution, uniform illumination, and glare-free performance;
5. Maze-type junction box with silicone rubber gasket for secure adhesion and high protection rating;
6. High-strength tempered glass with superior impact resistance, thermal shock tolerance, and high light transmittance;
7. Constant-current power supply with wide voltage input and constant-current output, featuring protection against shunt current, surge, overcurrent, open circuit, short circuit, high temperature, and electromagnetic interference;
8. Power factor cosφ ≥ 0.95;
9. Cable wiring.
