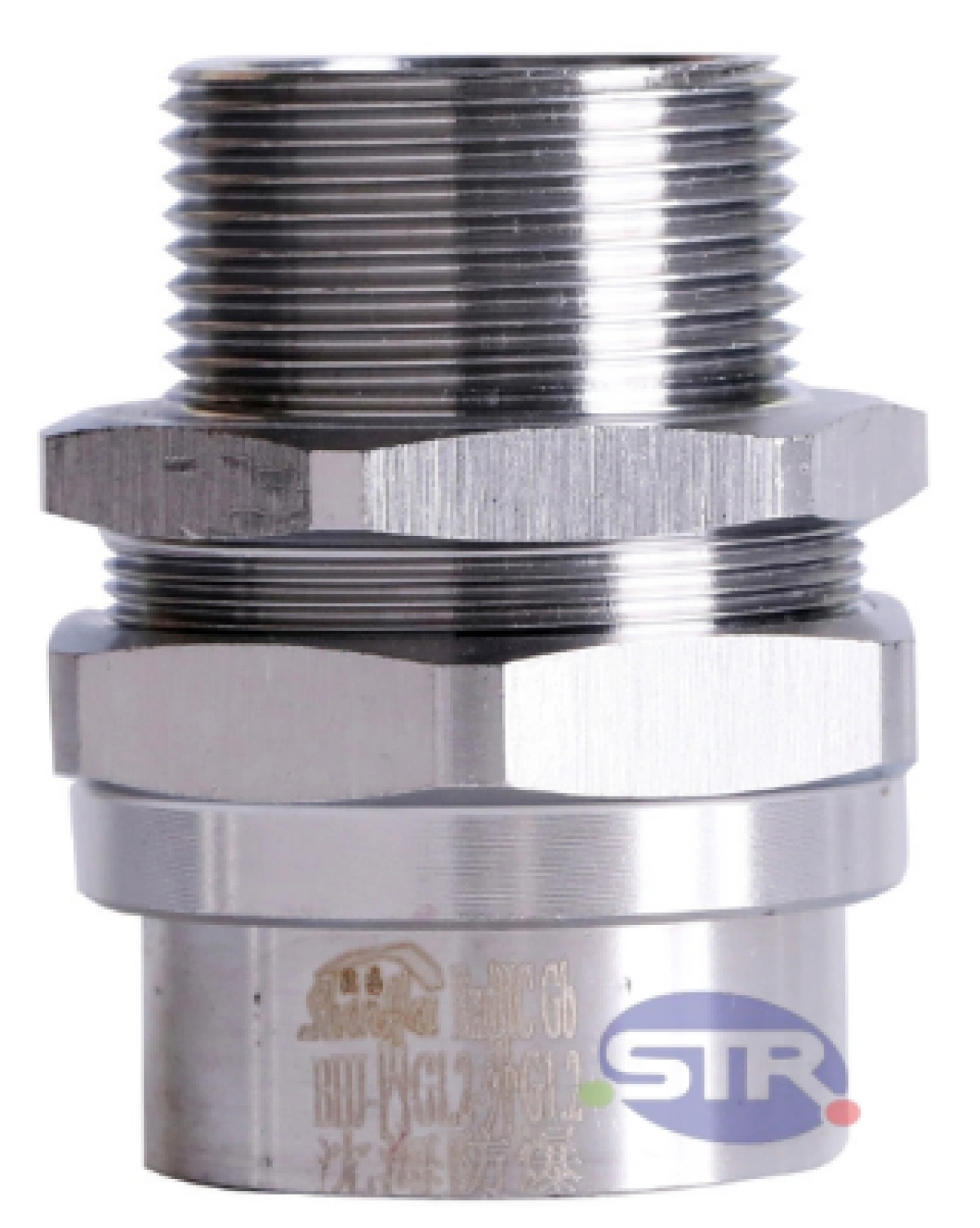

Explosion-Proof Cable Gland BDM-V
GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC60079-1、IEC60079-7、IEC60079-31
Constructed from high-quality carbon steel, brass, or stainless steel, this mechanical cable clamping device offers robust waterproof performance. The entry end features a threaded connection port suitable for non-armored cable entry.
| Thread Specifications | Applicable Cable Diameter Sealing Range (Φ) | Thread Length | Overall Length | Opposite Side/Maximum Outer Diameter S (Φ) | ||
| Imperial | American | Metric | ||||
| G1/2" | NPT1/2 | M20x1.5 | 8~10 | 15 | 63 | 34/37 |
| G3/4" | NPT3/4 | M25x1.5 | 9~14 | 15 | 63 | 38/42 |
| G1" | NPT1 | M32x1.5 | 12~20 | 17 | 72 | 45/50 |
| G1 1/4" | NPT1 1/4 | M40x1.5 | 14~23 | 17 | 78 | 55/61 |
| G1 1/2" | NPT1 1/2 | M50x1.5 | 22~28 | 17 | 79 | 65/72 |
| G2" | NPT2 | M63x1.5 | 25~37 | 19 | 85 | 81/86 |
| G2 1/2" | NPT2 1/2 | M75x1.5 | 33~50 | 24 | 107 | 98/106 |
| G3" | NPT3 | M90x1.5 | 47~63 | 26 | 110 | 113/119 |
| G4" | NPT4 | M115x2 | 62~81 | 28 | 122 | 136/140 |
| Explosion-Proof Marking | Protection Rating |
|---|---|
| Ex db IIC Gb, Ex eb IIC Gb, Ex ta IIIC Da |
IP66 |
1. Manufactured from high-quality carbon steel; materials can be customized to stainless steel or brass upon customer request;
2. Thread specifications can be specially fabricated or designed with different thread sizes at each end according to customer requirements.
1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;
2. Suitable for Class IIA, IIB, and IIC explosive gas atmospheres;
3. Suitable for Zone 21 and Zone 22 explosive dust atmospheres;
4. Suitable for Class IIIA, IIIB, and IIC explosive dust atmospheres;
5. Widely used for clamping and sealing cables in hazardous environments such as oil extraction, refining, chemical processing, and military applications.
