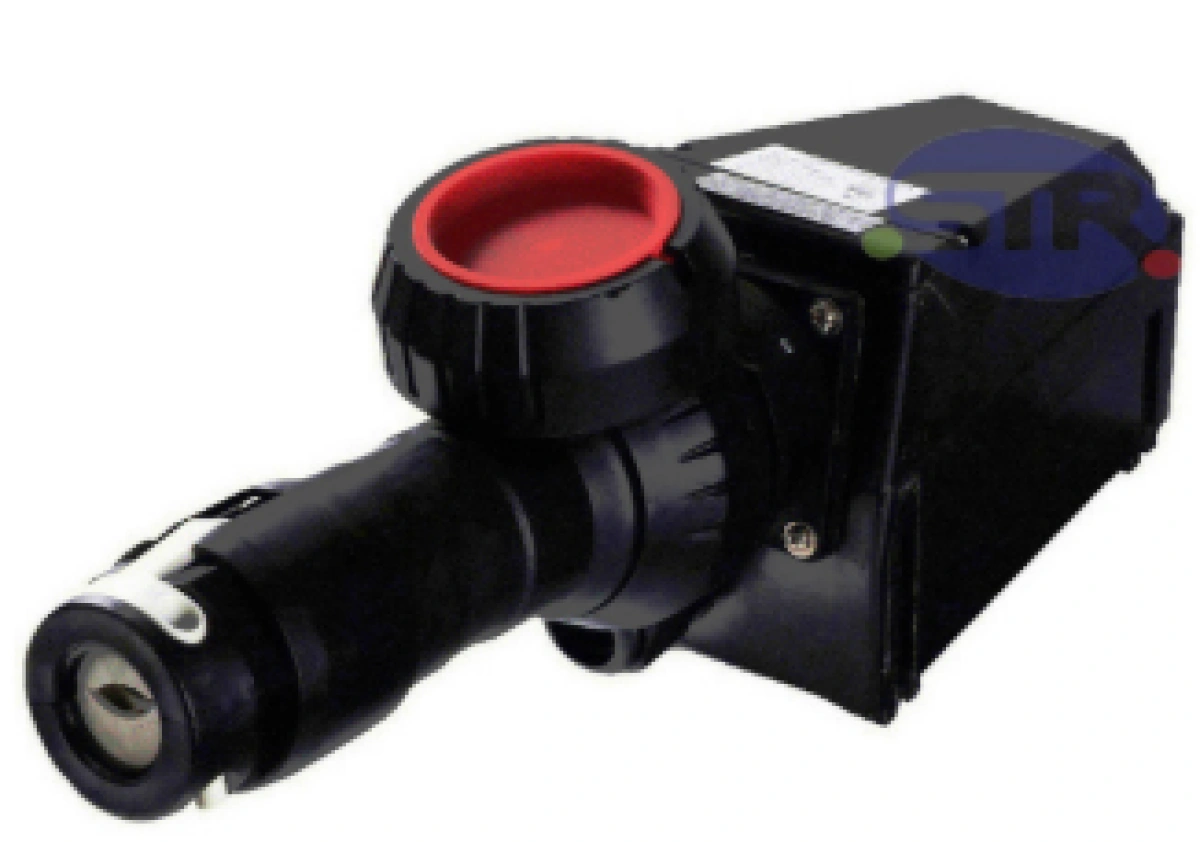

Explosion-Proof Corrosion-Resistant Plug And Socket BCZ8030 Red

SKU:

Type:Flameproof Corrosion-resistant Plug And Socket For Hazardous Locations

Color:Black

Ex Mark:Ex db e IIB T6 Gb, Ex db eb IIC T6 Gb, Ex tb IIIC T80°C Db

IP Rating:IP66

Model Number:BCZ8030 Red Corrosion-resistant

Warranty(Year):3-Year

Place of Origin:Zhejiang, China

Product Weight（kg）:0.3

Hotline liên hệ: 0902456087

Model Meaning

explosion-proof corrosion-resistant plug and socket bcz8030 model meaning

Implementation Standard

GB/T3836.1、GB/T3836.2、GB/T3836.3、GB/T3836.31、IEC60079-0、IEC 60079-1、IEC 60079-7、IEC 60079-31

Technical Parameter

explosion-proof corrosion-resistant plug and socket bcz8030

Model and Specifications	Rated Voltage	Rated Current	Number of Poles	Explosion-Proof Marking	Cable Outer Diameter	Inlet Thread	Protection Rating	Corrosion Resistance Rating
BCZ8030-16	AC 220V	16A	1P+N+PE	Ex db eb IIC T6 Gb Ex tb IIIC T80°C Db	Φ10~Φ14mm	M25	IP66	WF2
	AC 380V		3P+PE
	AC 380V		3P+N+PE
BCZ8030-32	AC 220V	32A	3P+PE		Φ12~Φ17mm	M40
	AC 380V		1P+N+PE
	AC 380V		3P+N+PE
BCZ8030-63	AC 220V	63A	1P+N+PE		Φ18~Φ33mm	M58
	AC 380V		3P+PE
	AC 380V		3P+PE 3P+N+PE
BCZ8030-125	AC 380/220V	125A	1P+N 3P+PE	Ex db eb IIC T4 Gb Ex tb IIIC T80°C Db	Φ18~Φ33mm	M58

Product Features

1. The enclosure is constructed from glass fiber reinforced unsaturated polyester resin molding or high-quality stainless steel welding, offering corrosion resistance, anti-static properties, impact resistance, and excellent thermal stability;

2. Exposed stainless steel fasteners provide superior corrosion resistance;

3. The enclosure is of increased safety type, housing explosion-proof switches;

4. The plug connects to electrical equipment;

5. The socket incorporates a reliable mechanical interlock mechanism: the switch closes only after the plug is fully inserted, and the plug can be removed only after the switch is opened;

6. The socket is equipped with a protective cover that shields the socket opening when the plug is removed, preventing foreign objects from entering;

7. Suitable for both conduit and cable wiring.

explosion-proof corrosion-resistant plug and socket bcz8030 red-10

Applicable Scope

1. Suitable for Zone 1 and Zone 2 locations in explosive gas environments;

2. Suitable for Class IIA, IIB, and IIC explosive gas environments;

3. Suitable for Zone 21 and Zone 22 locations in explosive dust environments;

4. Suitable for Class IIIA, IIIB, and IIC explosive dust environments;

5. Suitable for temperature classes T1 to T6;

6. Suitable for hazardous environments in petroleum extraction, refining, chemical processing, military applications, offshore oil platforms, tankers, metal fabrication, and similar industries;

7. Suitable for locations with high corrosion requirements.
